3.4.11 Structure Determination - Nuclear magnetic resonance spectroscopy

Specification

Students should:
  • understand that nuclear magnetic resonance gives information about the position of 13C or 1H atoms in a molecule
  • understand that 13C n.m.r. gives a simpler spectrum than 1H n.m.r.
  • know the use of the  scale for recording chemical shift
  • understand that chemical shift depends on the molecular environment
  • understand how integrated spectra indicate the relative numbers of 1H atoms in different environments
  • understand that 1H n.m.r. spectra are obtained using samples dissolved in proton-free solvents (e.g. deuterated solvents and CCl4)
  • understand why tetramethylsilane (TMS) is used as a standard
  • be able to use the n +1 rule to deduce the spin-spin splitting patterns of adjacent, non-equivalent protons, limited to doublet, triplet and quartet formation in simple aliphatic compounds

Nuclear magnetic resonance

NMR relies on the magnetic field produced by a spinning nucleus containing an odd number of nucleons (protons or neutrons). In the presence of an external magnetic field the nucleus can exhibit more than one spin state and can move between these states by the absorption of electromagnetic radiation of a specific frequency (energy).

The energy absorbed can be detected and from this information about the location (environment) of the nucleus can be deduced.

NMR is probably the most useful tool in the organic chemists arsenal for structural determination.

As organisms are mainly water (containing H atoms with an odd number of nucleons), NMR has developed into an invaluable medical diagtnostic tool, called an MRI (magnetic resonance instrument) scan.


top

Nuclear energy levels

Nuclei with odd numbers of nucleons (protons and neutrons) can have different energy levels. To help us differentiate these energy levels we say that they have 'spin'.

A hydrogen nucleus can have two different 'spin' states. These are designated as spin = +1/2 and spin = -1/2.

For a hydrogen nucleus to change spin states it must absorb energy (promotion) or lose energy (relaxation).

NMR Spectrometry


top

The magnetic field

A spinning nucleus consists of movement of electrical charge. This creates a corresponding magnetic field.

In the presence of a strong external magnetic field the hydrogen nuclei align, so that the magnetic field created by the spinning nucleus aligns with that of the external magnetic field. It is the lowest energy situation.

To change the spin state of a relaxed hydrogen nucleus, radiofrequency electromagnetic energy can be absorbed. The absorption occurs at a very specific radiofrequency, depending on the environment of the hydrogen nucleus (see below).

This absorption can be detected in an NMR spectrometer. The nuclei then relax, re-emitting the energy absorbed, in all directions, or transferring it in the form of vibrational energy to the solvent particles.


top

Hydrogen environments

The hydrogen nucleus aligns with the external magnetic field. It also, however, experiences other local magnetic fields caused by the electron clouds of its own electrons and those of neighbouring atoms. This means that the actual magnetic field experienced is a combination of the external field, plus all of the local magnetic fields. We say that the nucleus has a specific 'environment'.

The overall strength of the magnetic field experienced is the factor on which the radiofrequency needed to change spin states depends. Accordingly, hydrogen nuclei absorb at different radiofrequencies, depending on their local environment (assuming that we keep the external magnetic field constant). This allows analysis of the NMR absorption signals, and assignation of environments to the hydrogen nuclei that give rise to the signals.

Example: In CH3CH2OH there are three different environments for the hydrogen atoms:

  • CH3 - three hydrogen atoms in the same environment
  • CH2 - two hydrogen atoms in the same environment
  • OH - One hydrogen atom in a unique environment

Therefore there will be three discrete signals in the NMR spectrum


top

Units of measurement

NMR shifts (positions of the peaks) are measured in 'parts per million (ppm)'

The actual spectrum shows absorptions of electromagnetic radiation while the sample is held (actually rotated) in a homogenous magnetic field. The magnetic field has to be maintained very stable although in reality it is always a function of the environment. Even metal shelving can affect the actual value. However, this overcome by using a measurement method that depends on how far from an internal standard reference the absorptions occur in parts per million (ppm) of the magnetic field strength.

The internal reference is internationally agreed to be a compound that gives a strong signal close to the region where protons attached to carbon chains are likely to be found. The reference is tetramethylsilane, TMS.

Tetramethylsilane

Tetramethylsilane is a tetrahedral compound containing four methyl groups attached to a silicon atom. It is similar in structure to dimethylbutane replacing the central carbon with a silicon atom.

  • 1 Chemically very stable and unreactive.
  • 2 Volatile liquid which can be removed easily and recovered.
  • 3 Readily available in a pure form.
  • 4 Sharp, strong signal as all 12 hydrogens are in the same environment.

The signal due to tetramethylsilane, TMS, is adjusted to read zero on the spectrum. All other measurements are then taken as parts per million (ppm) shift of the absorbance when compared to this value. Each ppm shift is called 1 delta. The spectrum usually measures from 0 to 10 delta, although the instrument can usually be adjusted to read values that are higher.

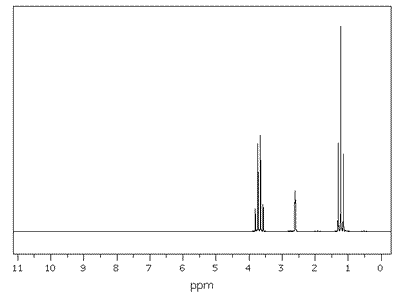

NMR spectrum of ethanol showing the signals measured on a scale of 0-11 ppm.

The reference at zero is set using TMS.


top

NMR Spectra

The spectrum itself is measured from the TMS zero mark at the right hand side in delta values up to delta = 10 (usually, although spectra can go much higher than this) moving left. It is possible to 'offset' the spectrum, so as to record anything that appears above delta = 10, however, the majority of organic chemistry 1H proton signals appear between delta = 0 and delta = 10.

The spectrum shows absorptions due to hydrogen atoms in specific environments.

Example: - The NMR spectrum of ethanol (view)

There are three major peaks at:

  • delta 1.1
  • delta 3.6
  • delta 4.8

Corresponding to absorptions from the protons in the groups:

  • CH3-
  • -CH2-
  • -OH

top

The integral

An integral to the NMR spectrum trace gives the area underneath the peak formed by the absorptions. This area (integral height) is directly proportional to the number of hydrogens causing the peak. In other words, if there are two separate groups of hydrogens in a molecule causing absorption, CH3 and CH2, then the ratio of hydrogens in these two groups is 3:2 and the height of the integral will be in the same ratio, 3:2.

The integrals are usually shown as curved lines above the actual peak being measured.


top

Splitting patterns

The spinning hydrogen nucleus itself causes a magnetic field that can affect neighbouring hydrogen nuclei. The proton spin may be +1/2 or -1/2 and each of these two states produces a slighty different magnetic field. This means that neighbouring protons experience two different fields, one when the hydrogen is in the +1/2 state and the other when the hydorgen is in the -1/2 spin state.

However, it is often the case that there is more than one neighbouring hydrogen atom, in which case the number of possible states that a neighbouring hydrogen can experience is equal to all of the different possible arrangement of spin states in the group of hydrogens.

For example, a CH2 group contains two hydrogen atoms, each of which can have two states +1/2 and -1/2. Therefore, the number of possible arrangements of states for the two hydrogens is:

state 1 state 2 state 3 state 4
+1/2 and +1/2 -1/2 and +1/2 +1/2 and -1/2 -1/2 and -1/2

However, as these two hydrogen atoms are identical and in equivalent environments, then a neighbouring hydrogen atom is not able to distinguish between states 2 and 3, meaning that there are only three different states, although the -1/2 and +1/2 states have twice the probability.

This is reflected in the signal formed by a hydrogen atoms adjacent to this CH2 group. It's signal is split into three peaks, the middle one of which has double the size (as its probability is twice as great).

In the NMR spectrum of ethanol, the CH3 protons have two neighbouring hydrogen atoms. These neighbours have three possible combined spin states, providing three possible magnetic environments for the CH3 group. Hence, the CH3 group is split into a triplet by the neigbouring CH2 group.

Likewise, the CH2 group is split into a quartet by its CH3 neighbours, which provide four different environments.

ethanol: CH3 - CH2 - OH
Interestingly, the OH, hydrogen has little effect in terms of splitting. It hardly splits or gets split.
