3.4.9 Polymers - Condensation polymers

Specification

Students should:
  • understand that condensation polymers may be formed by reactions between dicarboxylic acids and diols, between dicarboxylic acids and diamines and between amino acids
  • know the linkage of the repeating units of polyesters (e.g. Terylene) and polyamides (e.g. nylon 6,6 and Kevlar)

Condensation

This is otherwise known as addition - elimination, in other words a reaction that starts with addition of one molecule to another, followed by elimination of a small molecule, such as water, ammonia or a hydrogen halide.

Condensation reactions occur:

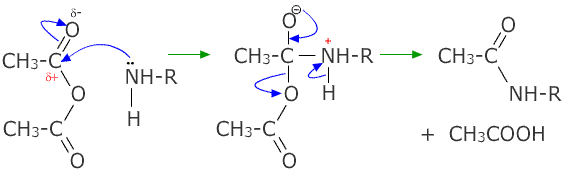

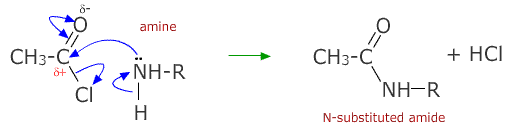

With amines

These all form amide (peptide) linkages between the two original molecular units

With alcohols

These all produce ester linkages between the original molecular units.

Condensation


top

Condensation polymerisation

This can occur when each of the reacting molecules has two functional groups able to condense.

For example:

A diamine (A) and a dioyl chloride (B)

The molecules can then link together in a chain A-B-A-B-A-B- etc

Condensation polymerisation

Nylon 6,6
